LH 560A

Mostly Use: for engine cooling pumps, centrifugal pumps, submersible pumps and general industrial pumps etc.
Pressure in the sealed chamber: <= 0.5Mpa
Temperature in the sealed chamber: -20~120oC
Linear Velocity: <= 6m / sec

LH 560A Description

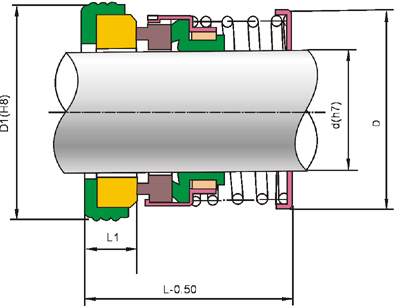

TYPE\SIZEdDD1LL1
LH560A-8818.22118.37
LH560A-9918.22423.37
LH560A-101020.62423.37
LH560A-111120.62423.37
LH560A-121221.82624.37
LH560A-131321.82624.37
LH560A-141426.42825.37
LH560A-151526.42825.37
LH560A-161626.43227.38
LH560A-171729.53227.38
LH560A-181829.53526.38
LH560A-191929.53526.38
LH560A-202031.63828.38
LH560A-222233.64028.38
LH560A-252539.64429.39
LH560A-2828454630.39
LH560A-303046.65031.39
LH560A-323246.65433.39
LH560A-353550.85836.310
LH560A-383854.36037.310
LH560A-404057.36438.310
LH560A-454561.36640.310
LH560A-505067.87242.310


Main Characteristics
Mostly Use: for engine cooling pumps, centrifugal pumps, submersible pumps and general industrial pumps etc.
Pressure in the sealed chamber: <= 0.5Mpa
Temperature in the sealed chamber: -20~120oC
Linear Velocity: <= 6m / sec
