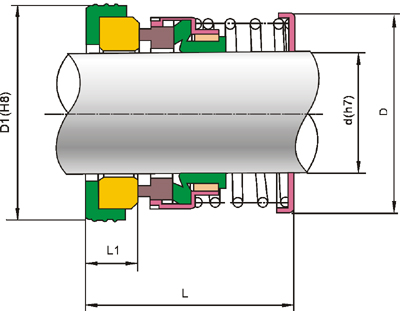

| TYPE\SIZE | d | D | D1 | L | L1 |
| LHBIA-14 | 14 | 26.5 | 30 | 24 | 5 |
| LHBIA-16 | 16 | 28 | 32 | 26 | 5 |
| LHBIA-18 | 18 | 29.5 | 35 | 30 | 7.5 |
| LHBIA-20 | 20 | 31.6 | 35 | 29 | 8 |
| LHBIA-25 | 25 | 40 | 40 | 33.5 | 8 |
| LHBIA-28 | 28 | 42.5 | 43 | 33.5 | 8 |
| LHBIA-30 | 30 | 45 | 45 | 34.5 | 9 |
| LHBIA-32 | 32 | 47.5 | 48 | 42.5 | 9 |
| LHBIA-33 | 33 | 47.5 | 48 | 42.5 | 9 |
| LHBIA-35 | 35 | 50 | 50 | 42.5 | 9 |
| LHBIA-38 | 38 | 54.5 | 56 | 42.5 | 9 |
| LHBIA-40 | 40 | 57 | 58 | 42.5 | 9 |
| LHBIA-43 | 43 | 60.5 | 61 | 46 | 9.5 |
| LHBIA-45 | 45 | 63 | 63 | 47.5 | 9.5 |
| LHBIA-48 | 48 | 64 | 66 | 47.5 | 9.5 |
| LHBIA-50 | 50 | 67.8 | 70 | 47.5 | 9.5 |
| LHBIA-53 | 53 | 71 | 73 | 50.5 | 9.5 |
| LHBIA-55 | 55 | 74 | 75 | 50.5 | 9.5 |
| LHBIA-58 | 58 | 80 | 78 | 51.5 | 9.5 |
| LHBIA-60 | 60 | 82.5 | 80 | 51.5 | 9.5 |
| LHBIA-65 | 65 | 85 | 85 | 52 | 10 |
| LHBIA-70 | 70 | 92 | 92 | 56 | 11 |
| LHBIA-80 | 80 | 105 | 104 | 67 | 12 |
| LHBIA-85 | 85 | 110 | 109 | 76 | 12 |
| LHBIA-90 | 90 | 115 | 111 | 78 | 12 |
Main Characteristics
Mostly Use: water, oil and other low corrosion liquids.
Pressure in the sealed chamber: <= 1.0Mpa
Temperature in the sealed chamber: -20~120oC
Linear Velocity: <= 15m / sec
