Home > Product > LH4702

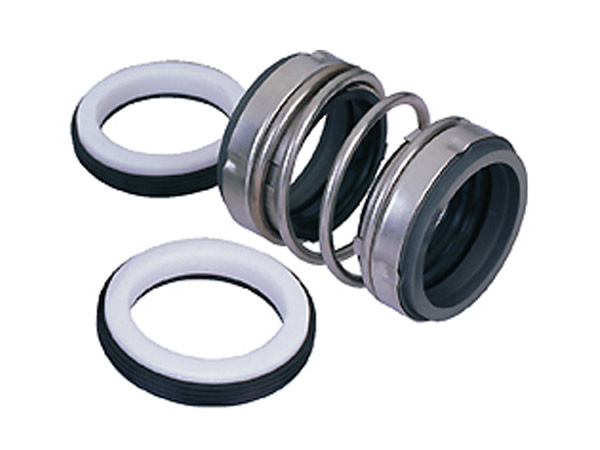

LH4702

Mostly Use: mediums face: general weak corrosive liquids and polluted water and so on, in which the quantity of solid particles is less than 4 percent in volume.
Closing liquid face: oil sort and so on.
Pressure in the sealed chamber: <= 0.35Mpa
Temperature in the sealed chamber: <=100oC
Linear Velocity: <= 10m / sec

LH4702 Description

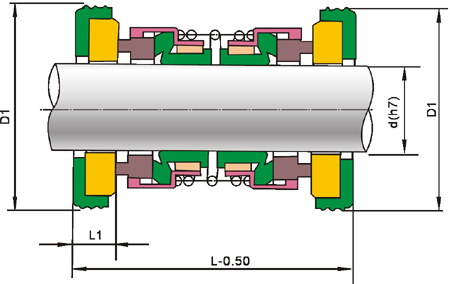

TYPE\SIZEdD1LL1
LH4702-20203546.88
LH4702-25254052.38
LH4702-28284352.38
LH4702-30304554.39
LH4702-32324864.39
LH4702-35355064.39
LH4702-40405864.39
LH4702-45456371.39.5
LH4702-50507071.39.5
LH4702-55557575.39.5
LH4702-60608077.39.5


Main Characteristics
Mostly Use: mediums face: general weak corrosive liquids and polluted water and so on, in which the quantity of solid particles is less than 4 percent in volume.
Closing liquid face: oil sort and so on.
Pressure in the sealed chamber: <= 0.35Mpa
Temperature in the sealed chamber: <=100oC
Linear Velocity: <= 10m / sec
